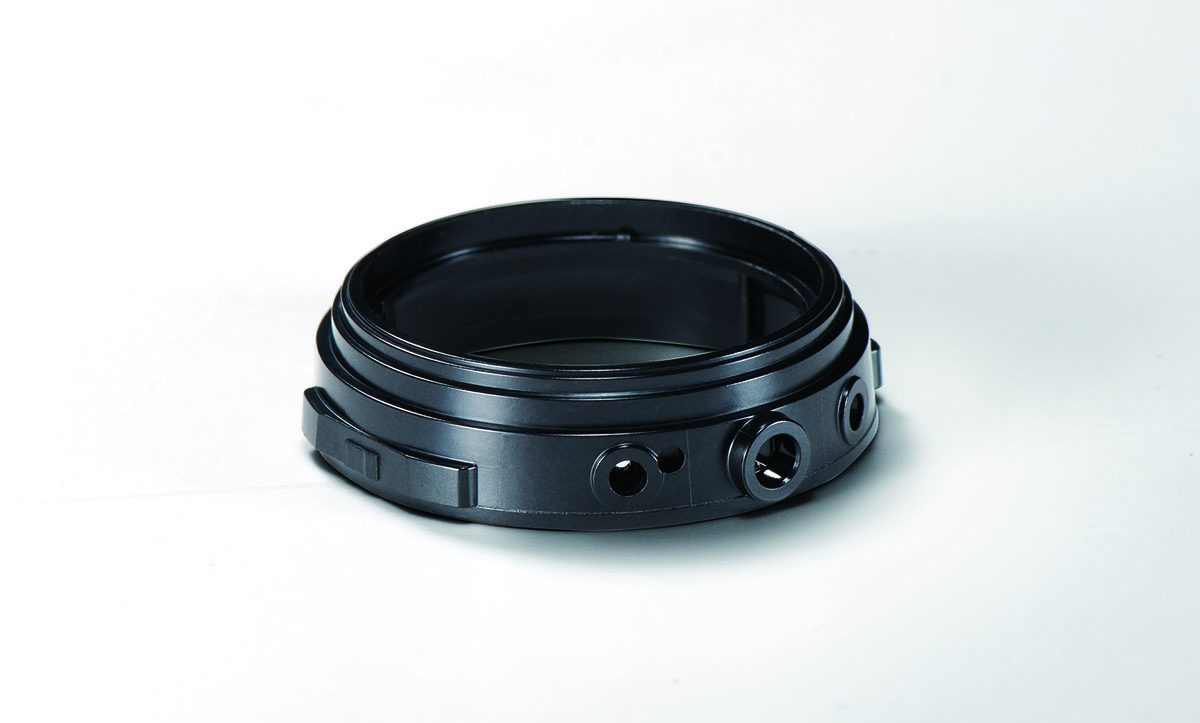

An inner case is installed in a box-shaped frame formed by screws that securely connect the bezel, case back and band connection pieces. A stronger structure is realized by absorbing shocks with the exterior instead of the core.
The case is constructed of carbon-fibre reinforced resin, which realizes higher rigidity than conventional resin while maintaining its lightweight.

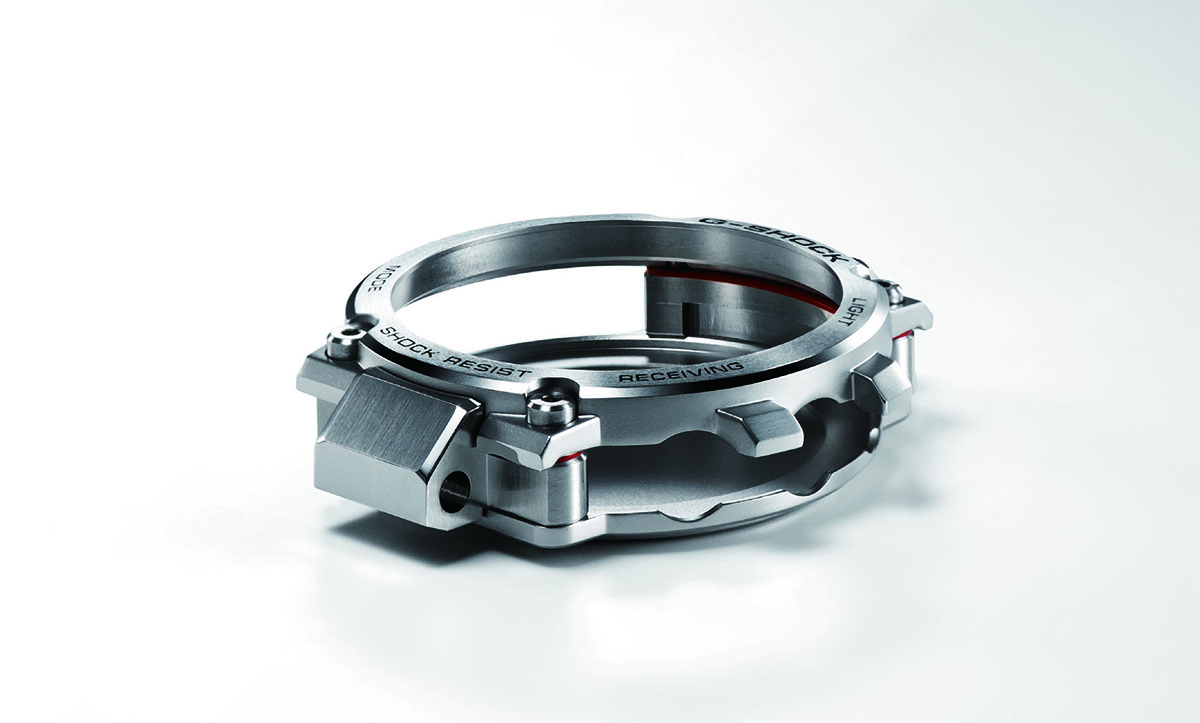

Fine-resin parts are firmly fixed by screws to the base of the thick, soft urethane band, which is then securely attached to the case by metal parts and large bolts. This unique, newly developed tough structure has reinforced the band connection section, where metal and resin intersect
The tough structure is built to withstand three kinds of gravitational acceleration: external shocks, centrifugal gravity and vibrations. Image shows MTG-S1000.
Refinement of the exterior design by improving the connection structure and developing a smaller module has reduced the case to 55.4mm vertically (12:00-6:00 axis), 51.92mm horizontally (3:00-9:00 axis), and 14.39mm in thickness.
Sallaz polishing, said to be the ultimate polishing technology, produces exceptionally smooth mirror-finished surfaces on sloping parts of metal products. Other processing techniques such as hairline, knurling (crown) and honing (screw shafts) processing are also included in the thoroughly detailed finishing conducted by the skilled hands of craftsmen.

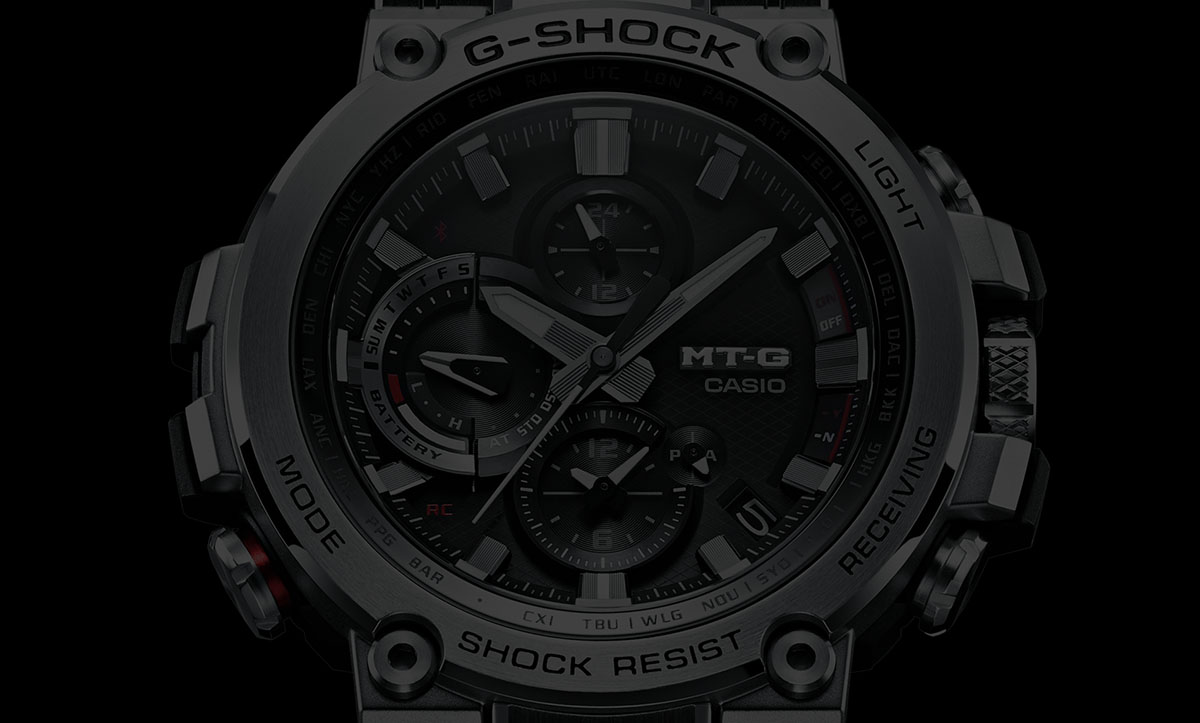

The dial’s look of quality is enhanced by texturing of the index and inset dial ring by grinding and installation of a laser-engraved minute hand.
An LED illuminates the dial with bright light to ensure visibility in the dark.
The times in two different cities are displayed on the main dial and an inset dial. This enables at-a-glance checking of the current time in either location with no troublesome operation.
Nimble operation is achieved by driving each hand independently. A small hand at 6 o'clock is driven by a dual-coil motor that presents unique hand movements.
Watch status checking [Smartphone app] The time reception status, solar power-generation status and internal data updating history are displayed graphically
A scratch-resistant, non-reflective coating applied to the high-transparency sapphire crystal assures clear visibility
